Lexar® Professional NM800PRO with Heatsink M.2 2280 PCIe Gen4x4 NVMe SSD

Categories: ,
Capacity

Features

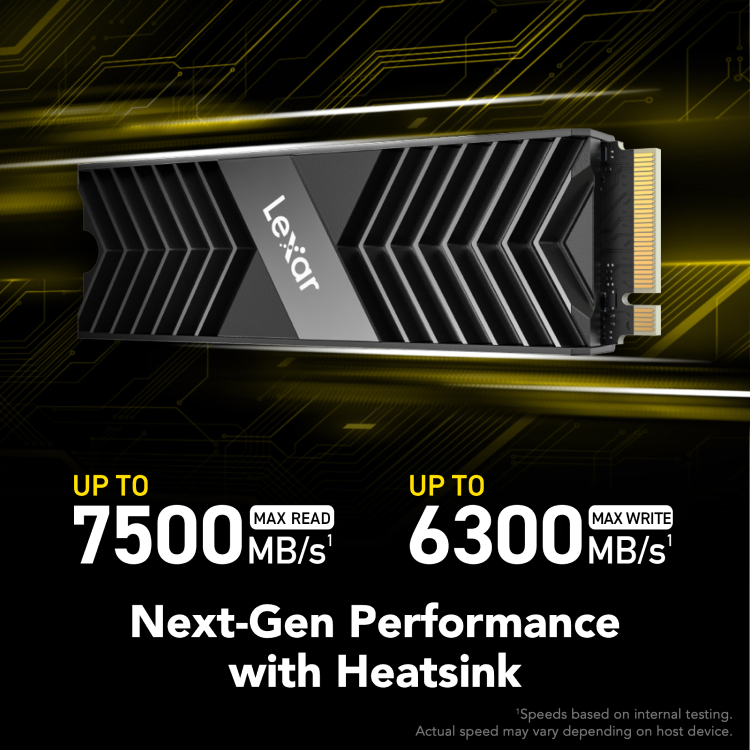

Next-Gen Performance with Heatsink

Designed for hardcore gamers, professionals and creators, the Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD provides unparalleled performance with speeds up to 7500MB/s read and 6500MB/s write¹. It’s powered by PCIe Gen4x4 NVMe 1.4 technology standard so you can experience 2x faster speeds than PCIe 3.0 SSD³, and features an integrated Heatsink to keep your system cool for unmatched performance.

Keep your system cool

The Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD features an integrated Heatsink and heat spreader label to effectively maintain speed, power efficiency, and thermal control for sustained high-performance when playing on PlayStation® 5 and PCs.

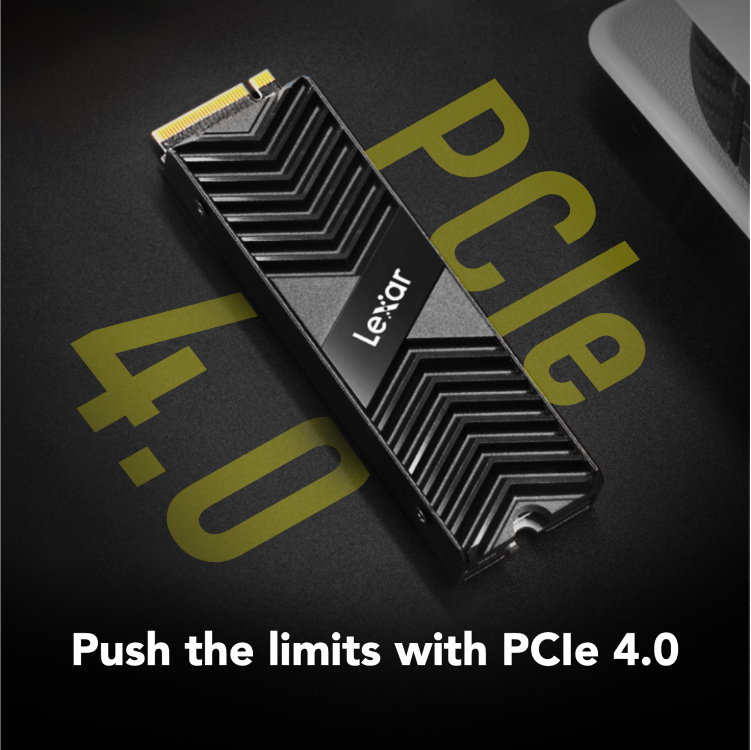

Push the limits with PCIe 4.0

The Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD is powered by PCIe Gen4x4 NVMe 1.4 technology standard, experience 2x faster speeds than PCIe 3.0 SSDs and up to 12x faster than SATA SSDM3. Is it also compatible with PCIe 3.0.

Ready for your PS5 systems

The Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD gives you unparalleled performance to take your PS5 gaming experience to the next level. And with up to 2TB capacity, store more of your favorite games so you never run out of room.

Energy Efficient

The Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD leverages the 12nm controller to produce lower power consumption and longer battery life for all your high-performance computing needs.

Built to last

Unlike traditional hard disk drives, the Lexar® Professional NM800 PRO with Heatsink M.2 2280 NVMe SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.

Lexar Quality Labs logo shield

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

  • Capacity
    2TB | 1TB | 512GB
  • Form Factor
    M.2 2280
  • Performance
    Sequential Read/Write:
    2TB: up to 7500MB/s read, 6500MB/s write speeds¹
    1TB: up to 7500MB/s read, 6300MB/s write speeds¹
    512GB: up to 7450MB/s read, 3500MB/s write speeds¹
    Random Read/Write: 2TB: up to 1300K IOPs read, 1200K IOPs write speeds 1TB: up to 1000K IOPs read, 1100K IOPs write speeds
    512GB: up to 500K IOPs read, 900K IOPs write speeds
  • Interface
    PCIe 4.0
  • Operating Temperature
    0°C to 70°C (32°F to 158°F)
  • Storage Temperature
    -40°C to 85°C (-40°F to 185°F)
  • Dimension (LxWxH)
    80 x 22 x 10 mm / 3.15” x 0.87” x 0.39”
  • Weight
    54g / 0.12lbs
  • Shock Resistant
    1500G, duration 0.5ms, Half Sine Wave2
  • Vibration Resistant
    10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)2
  • Total Bytes Written
    2TB: 2000TBW
    1TB: 1000TBW
    512GB: 500TBW
  • NAND Flash
    3D TLC
  • MTBF
    1,500,000 Hours
  • Warranty
    5-year limited warranty

1 Up to 7500 MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.

2 Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.

3 Comparison based on internal testing. Actual performance may vary.

4 Based on internal testing. Actual performance may vary.

Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.

General Disclosure

Product appearance, performance, software, and packaging may vary based on shipping date and available inventory.

Usable Storage Disclosure

Actual usable storage may be less than stated due to system formatting and other functions. 1GB = 1 billion bytes.

Part Numbers

Global
  • Capacity
    Part Number
    MSRP
  • 2TB
    LNM800P002T-RN8NG
    $259.99
  • 1TB
    LNM800P001T-RN8NG
    $159.99
  • 512GB
    LNM800P512G-RN8NG
    $84.99
