Key Features:

Sequential read speed up to 14,000MB/s, sequential write speed up to 13,000MB/s

PCIe 5.0 technology and next-gen 232-layer 3D TLC NAND combine to deliver blistering read/write speeds and accelerate load times by 200%
A powerful 6nm controller optimizes heat control for a smoother experience and more efficient performance
DRAM Cache and SLC Dynamic Cache greatly enhance data transfer speeds to reduce wait times and improve system responsiveness
Works with Microsoft DirectStorage to significantly boost game loads, minimize delays, conserve CPU power, and enrich the gaming experience

Key Features:

Sequential read speed up to 14,000MB/s, sequential write speed up to 13,000MB/s

PCIe 5.0 technology and next-gen 232-layer 3D TLC NAND combine to deliver blistering read/write speeds and accelerate load times by 200%
A powerful 6nm controller optimizes heat control for a smoother experience and more efficient performance
DRAM Cache and SLC Dynamic Cache greatly enhance data transfer speeds to reduce wait times and improve system responsiveness
Works with Microsoft DirectStorage to significantly boost game loads, minimize delays, conserve CPU power, and enrich the gaming experience

Key Features:

Sequential read speed up to 14,000MB/s, sequential write speed up to 10,000MB/s

PCIe 5.0 technology and next-gen 232-layer 3D TLC NAND combine to deliver blistering read/write speeds and accelerate load times by 200%
A powerful 6nm controller optimizes heat control for a smoother experience and more efficient performance
DRAM Cache and SLC Dynamic Cache greatly enhance data transfer speeds to reduce wait times and improve system responsiveness
Works with Microsoft DirectStorage to significantly boost game loads, minimize delays, conserve CPU power, and enrich the gaming experience

Features

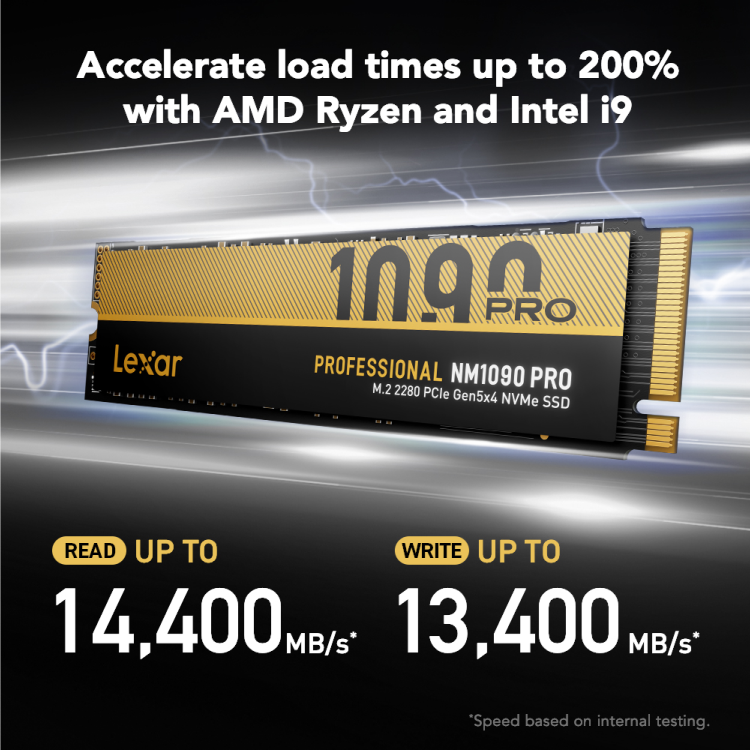

Accelerate Load Times by up to 200%

Experience blistering read/write speeds up to 14,000/13,000MB/s¹ thanks to a combination of PCIe 5.0 technology and next-gen 232-layer 3D TLC NAND.

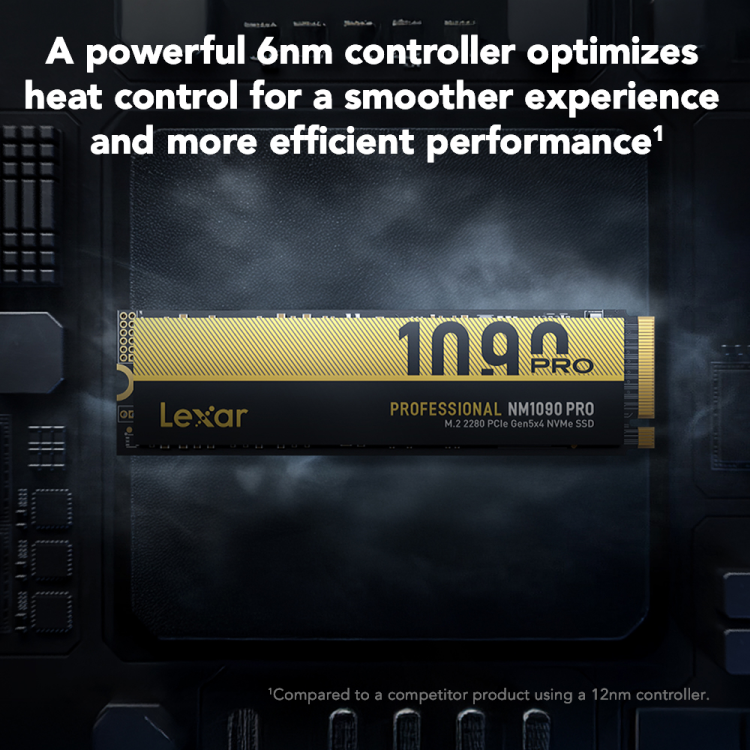

Heat-Defying 6nm Controller

A powerful 6nm controller optimizes heat control for a smoother experience and more efficient performance. At high performance loads, the NM1090 PRO SSD’s peak temperatures are 36% lower compared to a competitor using a 12nm controller.

A State-of-the-Art Experience

Built to leverage Microsoft DirectStorage³ and significantly boost game loads, minimize delays, conserve CPU power, and enrich the gaming experience.

Easy Drive Management

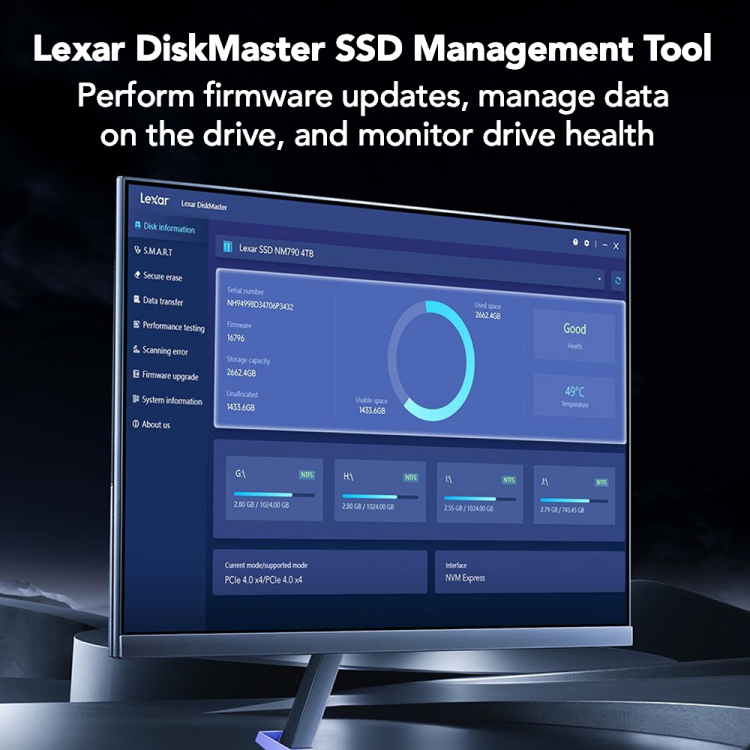

The Lexar DiskMaster SSD Management tool allows you to perform firmware updates that enhance the drive’s reliability, manage drive data, securely erase private files, and monitor drive health to detect potential issues.

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

Capacity

4TB | 2TB | 1TB
Form Factor

M.2 2280
Interface

PCle Gen 5x4
Perforrmance

1TB: Sequential read speed up to 14,000MB/s, sequential write speed up to 10,000MB/s, random read up to 1650K IOPs, random write up to 1800K IOPs¹
2TB: Sequential read speed up to 14,000MB/s, sequential write speed up to 13,000MB/s, random read up to 2100K IOPs, random write up to 1800K IOPs¹
4TB: Sequential read speed up to 14,000MB/s, sequential write speed up to 13,000MB/s, random read up to 2100K IOPs, random write up to 1700K IOPs¹
Operating Temperature

0°C ~ 70°C (32°F to 158°F)
Storage Temperature

-40°C ~ 85°C (-40°F to 185°F)
Shock

1500G, duration 0.5ms, Half Sine Wave
Vibration

0-2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
Dimensions (L x W x H)

80 x 22 x 3.8mm / 3.15” x 0.87” x 0.15"
TBW

1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW
MTBF

1,500,000 Hours

¹Up to 14,000MB/s read transfer, up to 13,000MB/s write. Speeds based on internal testing. Actual performance may vary.

²Compared to PCIe 4.0 SSDs.

³This feature will only work if the computer meets the working requirements of DirectStorage and the game is compatible with DirectStorage.

Lexar is not liable for any loss of data or images.

Product appearance, performance, software offerings, and packaging may vary depending on ship date and available inventory.

Actual usable memory capacity may vary. 1GB equals 1 billion bytes.

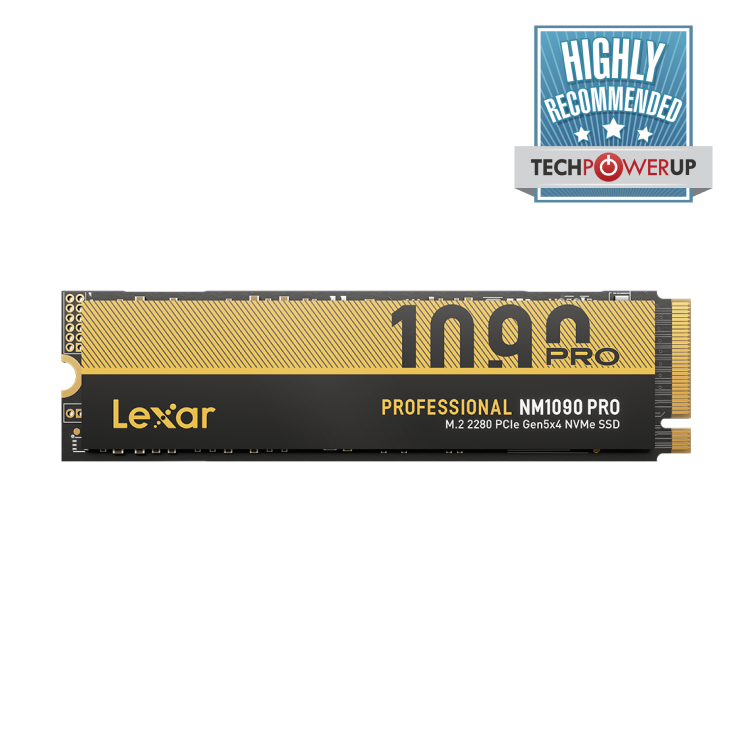

Lexar^® Professional NM1090 PRO PCIe 5.0 NVMe M.2 2280 SSD
