Key Features:

Sequential Read up to 7000MB/s, Sequential Write Speed up to 6000MB/s, random read up to 800,000 IOPs, random write up to 600,000 IOPs

High-speed Performance
PCIe Gen4x4 Interface
NVMe 1.4 Technology Standard
Compact And Slim

Key Features:

Sequential Read up to 7000MB/s, Sequential Write Speed up to 6000MB/s, random read up to 800,000 IOPs, random write up to 600,000 IOPs

High-speed Performance
PCIe Gen4x4 Interface
NVMe 1.4 Technology Standard
Compact And Slim

Key Features:

Sequential Read up to 7000MB/s, Sequential Write Speed up to 6000MB/s, random read up to 800,000 IOPs, random write up to 600,000 IOPs

High-speed Performance
PCIe Gen4x4 Interface
NVMe 1.4 Technology Standard
Compact And Slim

Features

High Performance to Power Through Your Work

Built to help you power through your workday, the Lexar NQ790 PCIe 4.0 SSD delivers the high performance you need. Read/write speeds up to 7000/6000MB/s1ensure that it can keep up with your work pace while high-quality NAND delivers the reliability you expect from Lexar and a 5-year warranty offers further peace of mind.

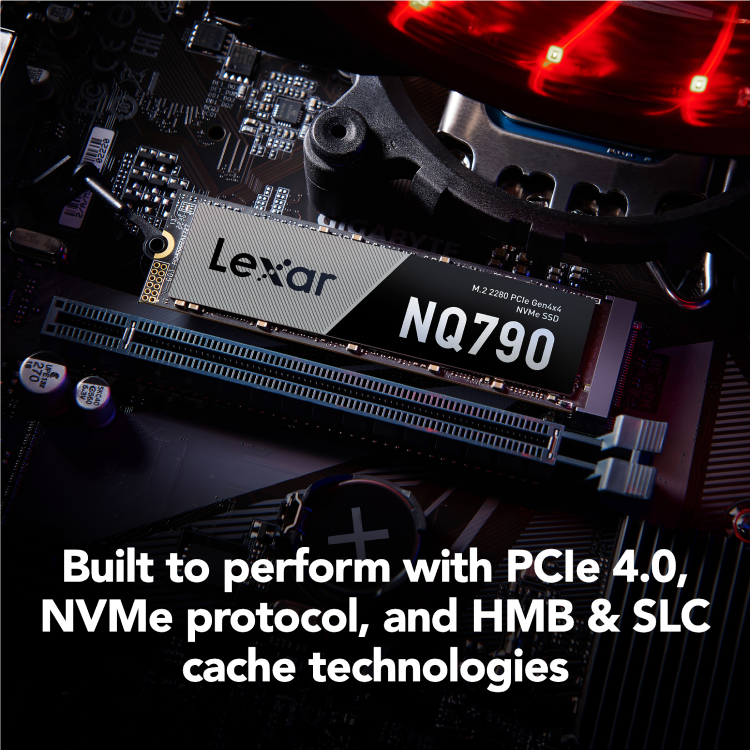

Built to Perform

Enjoy an improved user experience thanks to the Lexar NQ790 PCIe 4.0 SSD’s PCIe 4.0 interface, NVMe protocol, and HMB and SLC cache technologies.

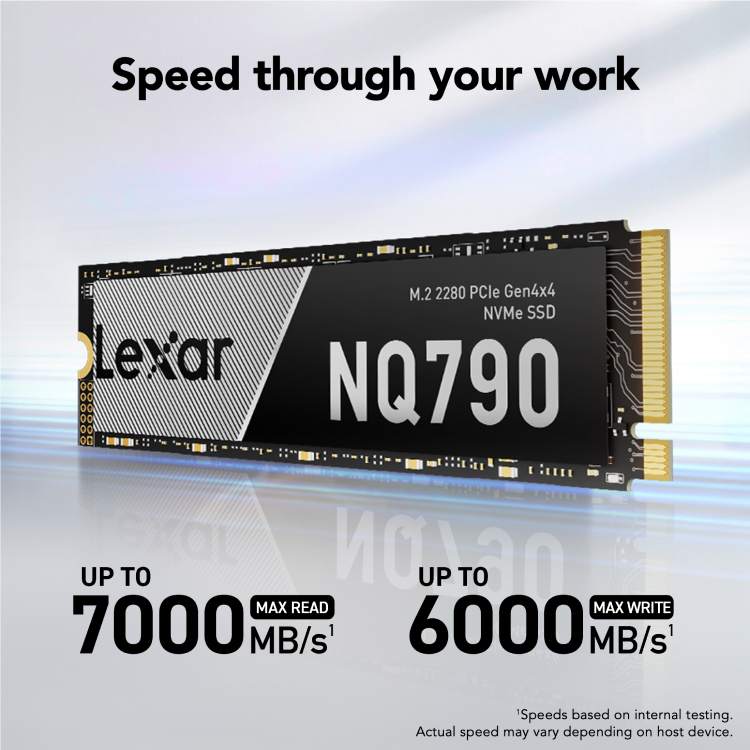

Speed Through Your Work

With sequential read/write speeds up to 7000/6000MB/s1, the drive is ready to conquer your workload and help you meet your deadlines.

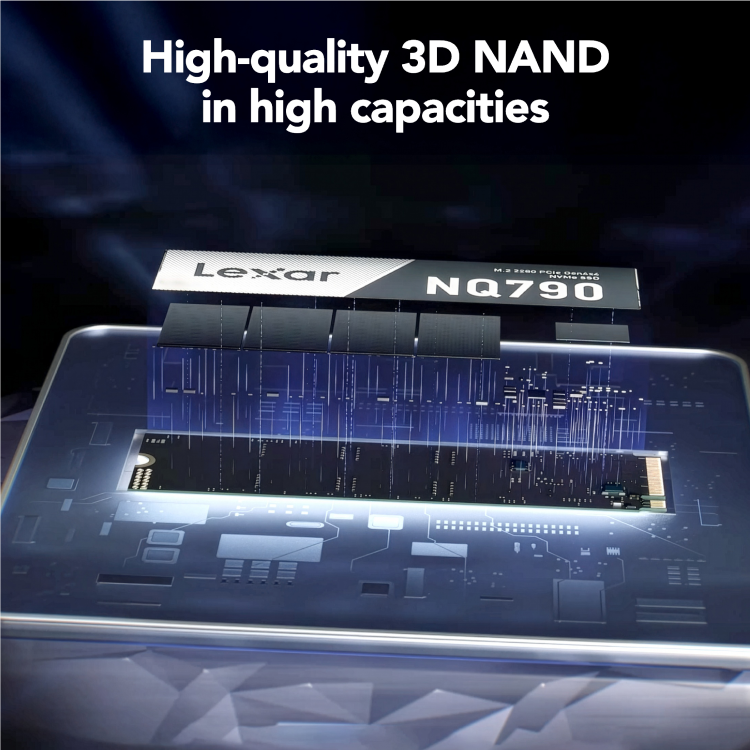

High-Quality 3D NAND in High Capacities

Cutting-edge NAND flash delivers the reliability and endurance you depend on, in your choice of capacities.

Comes with Peace of Mind

Your drive is backed by 5-year warranty so you can purchase and deploy with confidence.

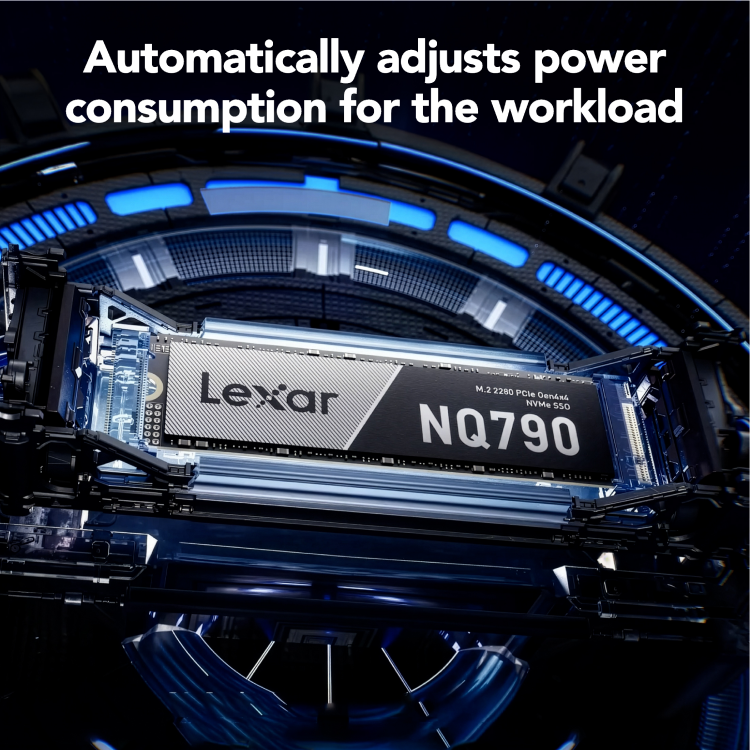

Intelligent Power Control

With good power management, you can intelligently control power consumption according to the load.

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

Capacities

500GB/1TB/2TB
Form Factor

M.2 2280
Interface

PCIe Gen4x4
Performance 500GB

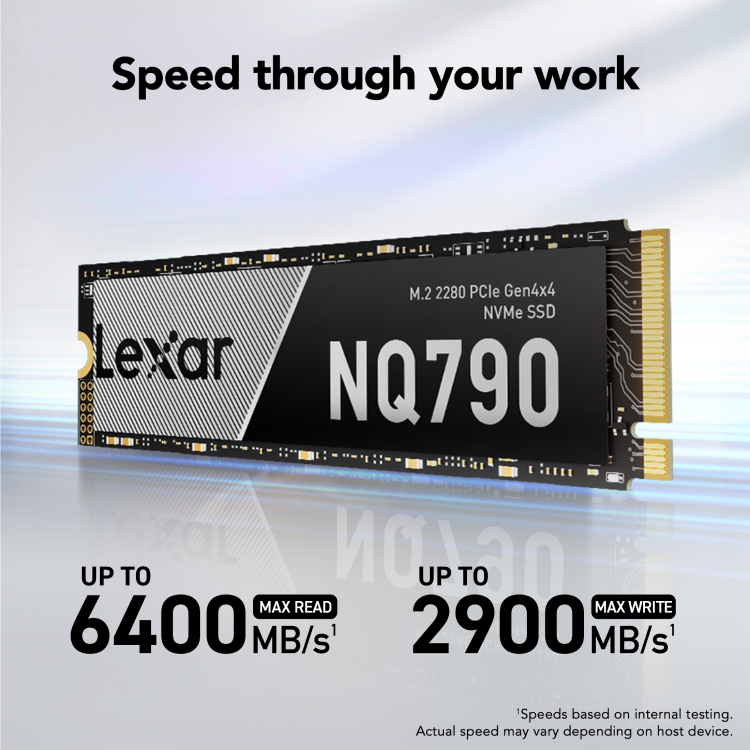

Sequential Read up to 6400MB/s, Sequential Write Speed up to 2900MB/s, random read up to 800,000 IOPs, random write up to 600,000 IOPs1
Performance 1TB | 2TB

Sequential Read up to 7000MB/s, Sequential Write Speed up to 6000MB/s, random read up to 800,000 IOPs, random write up to 600,000 IOPs1
Operating Temperature

0°C to 70°C (32°F to 158°F)
Storage Temperature

-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)

80 x 22 x 2.45 mm (3.15” x 0.87” x 0.10”)
Weight

6g / 0.013 lbs
Warranty

Five-year limited warranty
Shock-resistant

1500G, duration 0.5ms, Half Sine Wave²
Vibration-resistant

10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)²
TBW

500GB:300TBW，1TB:600TBW，2TB:1200TBW
MTBF

1,500,000 Hours

¹ Speeds based on internal testing. Actual performance may vary.

² Shock-resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration-resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.

³ Comparison based on internal testing. Actual performance may vary.
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes.
Lexar is not liable for any loss of data or images.

Part Numbers

Global

Capacity

Part Number
500GB

LNQ790X500G-RNNNG
1TB

LNQ790X001T-RNNNG
2TB

LNQ790X002T-RNNNG

North America

Capacity

Part Number
500GB

LNQ790X500G-RNNNU
1TB

LNQ790X001T-RNNNU
2TB

LNQ790X002T-RNNNU

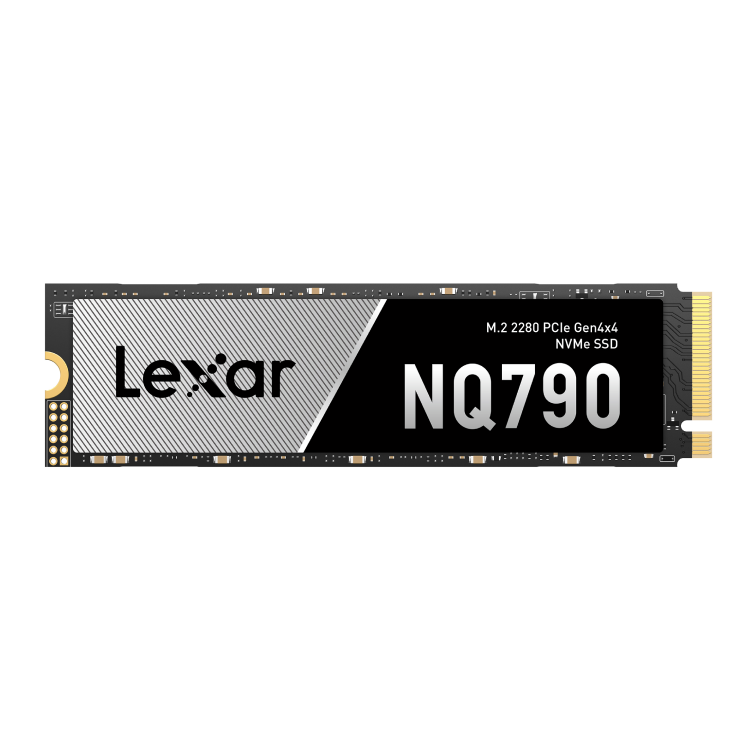

Lexar^® NQ790 PCIe 4.0 SSD
